SungJin Techwin

PRODUCT

We seek to foster talented people and impress customers, and to become the company people trust the most
with the best products and the highest quality, all with creative, innovative, and challenging spirit.

Toggle

We developed military switches with complex functions and sensors and
are producing high-quality military products suitable for military use.

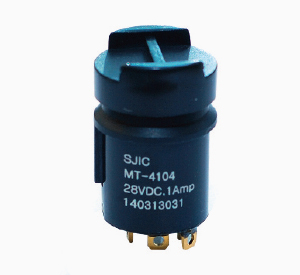

MT-X101

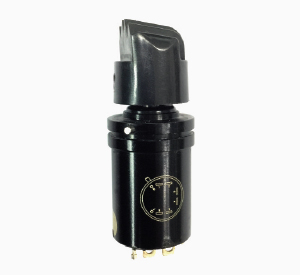

MT-X102
MT-X103
MT-X104
MT-X105
MT-X106
MT-X107
MT-X108
MT-X109
MT-X110
MT-X111
MT-X112
MT-X113
MT-X114
MT-X115
MT-X122
MT-X216
MT-X217
MT-X218
MT-X219
MT-X220
MT-X221

Click on the product to view the specification information

MT-X101

X : Position No
4(4WAY TOGGLE)
5(4WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X102

X : Position No
2(2WAY TOGGLE)
4(4WAY TOGGLE)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X103

X : Position No
4(4WAY TOGGLE)
5(4WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X104

X : Position No
4(4WAY TOGGLE)
5(4WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X105

X : Position No
4(4WAY TOGGLE)
5(4WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X106

X : Position No
2(2WAY TOGGLE)
3(2WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X107

X : Position No
2(2WAY TOGGLE)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1min.)
Insulation Resistance
DC 500V 1000㏁
Operating Force
Toggle : 1.5±0.5 lbs
Operationg Travel
Max. 18 ˚
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X108

X : Position No
4(4WAY TOGGLE)
5(4WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1min.)
Insulation Resistance
DC 500V 1000㏁
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X109

X : Position No
3(3WAY TOGGLE)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X110

X : Position No
2(2WAY TOGGLE), 3(2WAY TOGGLE+PUSH)
4(4WAY TOGGLE), 5(4WAY TOGGLE+PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X111

X : Position No
4(4WAY TOGGLE)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X112

X : Position No
4(4WAY TOGGLE)
5(4WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X113

X : Position No
4(4WAY TOGGLE)
5(4WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X114

X : Position No
2(2WAY TOGGLE)
3(2WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X115

X : Position No
2(2WAY TOGGLE)
3(2WAY TOGGLE + PUSH)
Electrical Rating
1A@28V DC(Resistive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
PUSH_3.3±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X122

X : Position No
4(4WAY TOGGLE)
Electrical Rating
1A@28V DC(Inductive)
Withstand Voltage
AC 1000V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
TOGGLE_1.5±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X216

X : Position No
3(3WAY TOGGLE), 4(3WAY TOGGLE+PUSH)
4(4WAY TOGGLE), 5(4WAY TOGGLE+PUSH)
Electrical Rating
50mA@28VDC (Resistive)
Withstand Voltage
AC 1050V @ 10mA(1Min.)
Insulation Resistance
DC 500V 100MΩ
Operating Force
2.5±0.5 lbs
Endurance Cycles at
Operating Condition
Max.16°
Operationg Travel
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X217

X : Position No
4(3WAY TOGGLE)
5(4WAY TOGGLE + PUSH)
Electrical Rating
50mA@28VDC (Resistive)
Withstand Voltage
AC 1050V @ 10mA(1Min.)
Insulation Resistance
DC 500V 100MΩ
Operating Force
2.5±0.5 lbs
Operationg Travel
Max.16°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X218

X : Position No
4(4WAY TOGGLE)
Electrical Rating
50mA@28VDC (Resistive)
Withstand Voltage
AC 1050V @ 10mA(1Min.)
Insulation Resistance
DC 500V 100MΩ
Operating Force
2.5±0.5 lbs
Operationg Travel
Max.12°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X219

X : Position No
4(4WAY TOGGLE)
5(4WAY TOGGLE+PUSH)
Electrical Rating
50mA@28VDC (Resistive)
Withstand Voltage
AC 1050V @ 10mA(1Min.)
Insulation Resistance
DC 500V 1000MΩ
Operating Force
2.5±0.5 lbs
Operationg Travel
Max.18°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X220

X : Position No
2(2WAY TOGGLE)
3(2WAY TOGGLE+PUSH)
Electrical Rating
50mA@28VDC (Resistive)
Withstand Voltage
AC 1050V @ 10mA(1Min.)
Insulation Resistance
DC 500V 100MΩ
Operating Force
2.5±0.5 lbs
Operationg Travel
Max.16°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource

MT-X221

X : Position No
2(2WAY TOGGLE)
3(2WAY TOGGLE+PUSH)
Electrical Rating
50mA@28VDC (Resistive)
Withstand Voltage
AC 1050V @ 10mA(1Min.)
Insulation Resistance
DC 500V 100MΩ
Operating Force
2.5±0.5 lbs
Operationg Travel
Max.16°
Endurance Cycles at
Operating Condition
Electrical : Min. 50,000 cycles
Mechanical : Min 70,000 cycles
Request a resource
